TYPHON STOMP V900: Compact Track Loader Performance for Restricted-Access Sites

For projects where a full-size track loader cannot access the site, the TYPHON STOMP V900 1.4 Ton Compact Track Loader offers a professional-grade alternative without a corresponding compromise in capability. Finished in TYPHON's signature yellow, the V900 is engineered to deliver commercial-level lifting, hydraulic, and traction performance within a footprint suited to narrow gates, residential properties, and other confined work areas.

The following overview outlines the specifications and design features that position the STOMP V900 as a practical addition to contractor, municipal, and rental fleets.

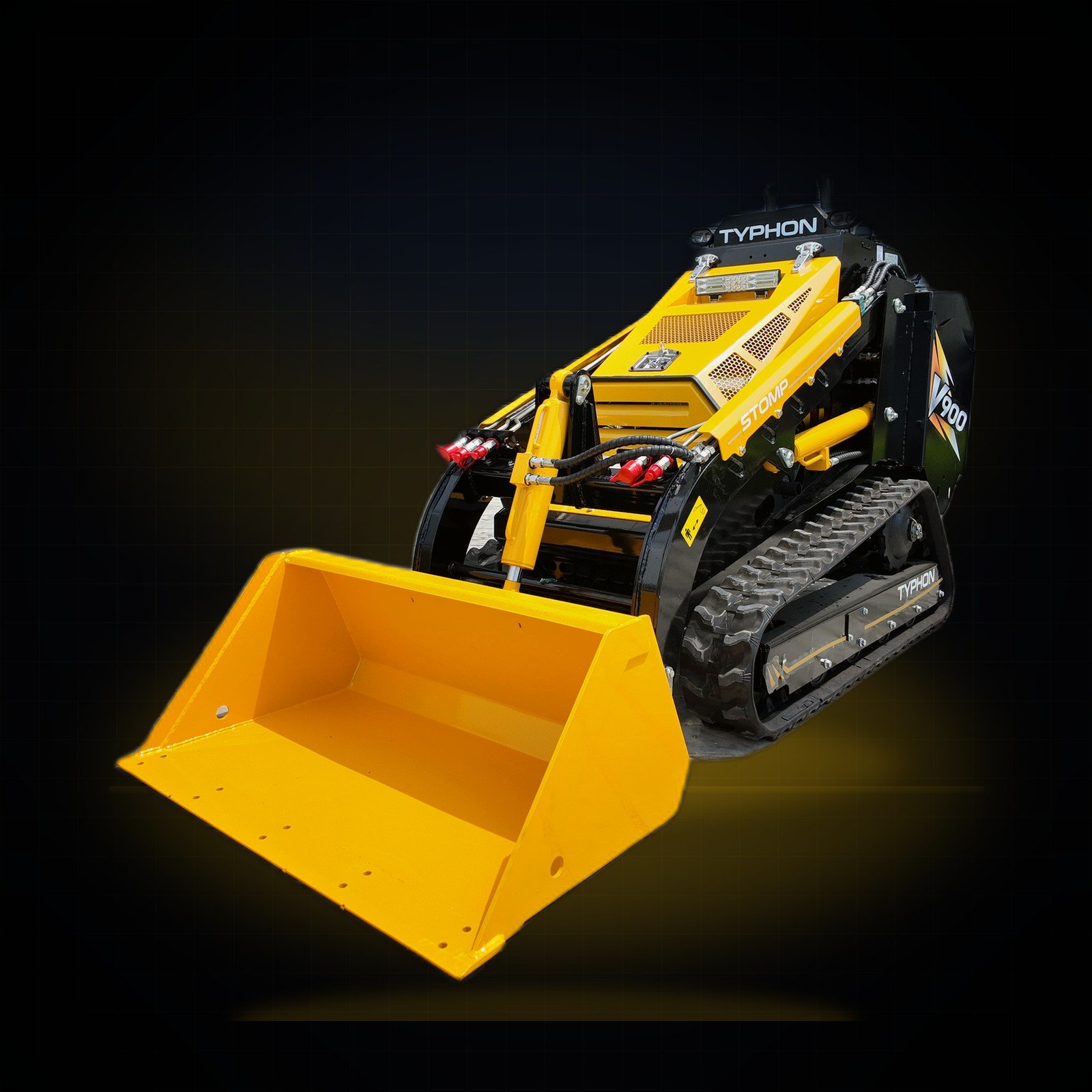

TYPHON STOMP V900 compact track loader

Engine and Fuel Capacity

The V900 is powered by the Kubota D1105, a 25 HP three-cylinder, water-cooled diesel engine with 1,226 cc of displacement and 71.5 N·m of maximum torque. This engine platform is widely used across the industry for its consistent power delivery across grading, material handling, landscaping, and attachment operation.

The machine is equipped with a 33-liter (8.7-gallon) fuel tank, supporting extended operating periods between refueling.

Hydraulic System

The V900 is fitted with a three-pump, three-valve hydraulic system rated at 48 L/min (12.7 GPM) and 16 MPa (2,321 PSI). Unlike many compact track loaders that operate on a single auxiliary circuit, the V900 incorporates a Dual Auxiliary Hydraulic Output System, enabling compatibility with multi-function attachments that require independent hydraulic circuits, such as swing and side-shift implements.

Additional hydraulic features include:

• Quick-connect couplers for efficient attachment changeover
• An independent hydraulic oil cooling system to maintain stable operating temperatures
• Protected hose routing to reduce exposure to debris and impact damage

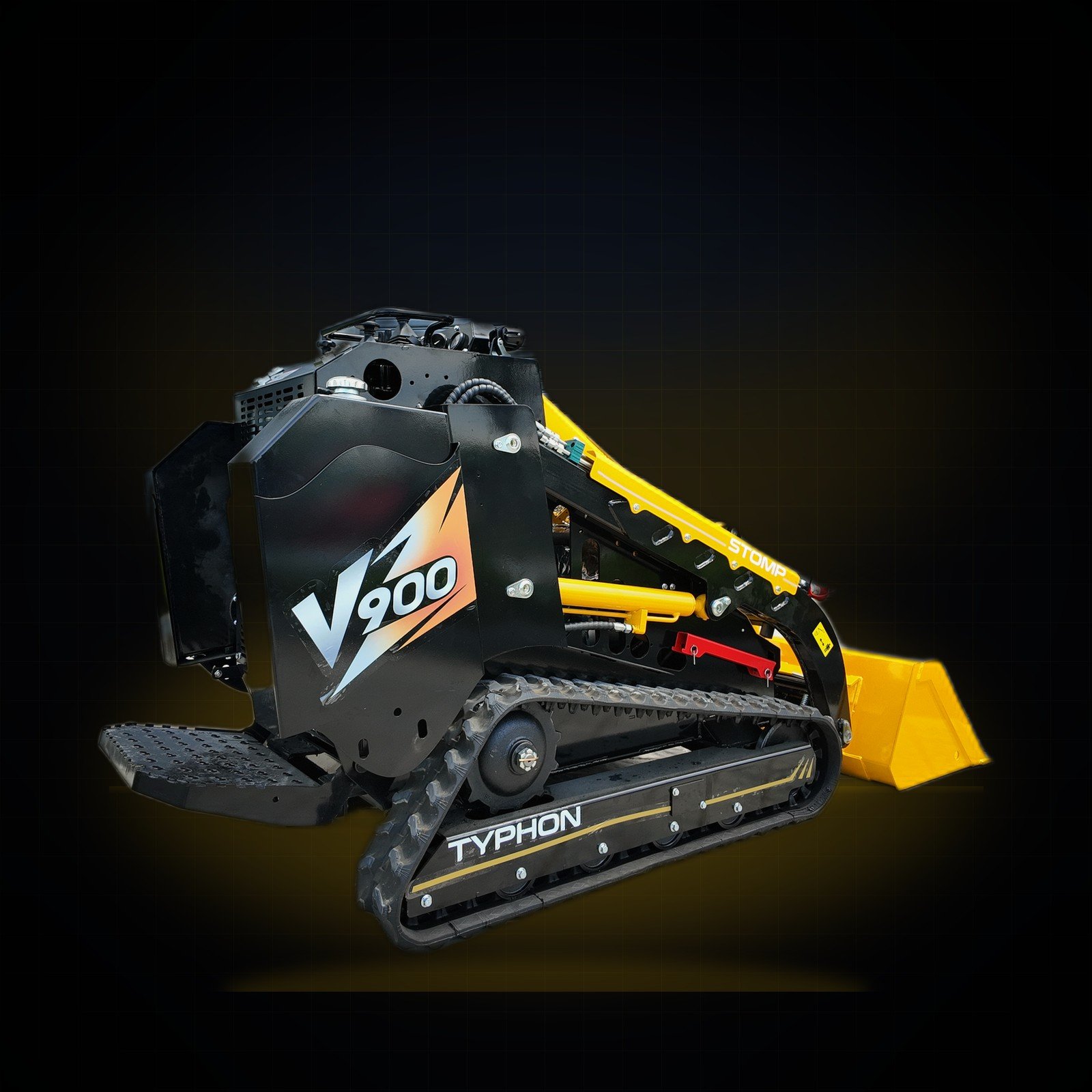

TYPHON STOMP V900 hydraulic arm and hose routing

Lifting Specifications

• Rated operating capacity: 1,014 lbs (460 kg)
• Maximum load capacity: 1,102 lbs (500 kg)
• Maximum operating height: 9.4 ft (2,873 mm)
• Dumping height: 5.6 ft (1,704 mm)

Structural durability is supported by a reinforced hydraulic cylinder mount and an internally structured, low-weld rectangular boom tube, designed to maintain rigidity under repeated load-bearing operation.

Dimensions and Mobility

At 35.9 inches (911 mm) wide, the V900 is dimensioned for standard gate widths and other space-constrained environments, including interior demolition sites and residential properties. Its triangular track system is designed to provide stability and traction across soft soil, mud, gravel, and uneven terrain.

Operator Interface

The stand-on platform incorporates several features intended to support operator control and comfort over extended use:

• Ergonomic dual joystick controls
• A digital dashboard displaying fuel level and machine status
• Fish-eye anti-slip pedals
• A three-point LED lighting system, comprising dual work lights and a front LED light bar
• Protective side safety guards
• A T-style locking system with high-strength hinges and key start ignition
• Accessible service points to support routine maintenance

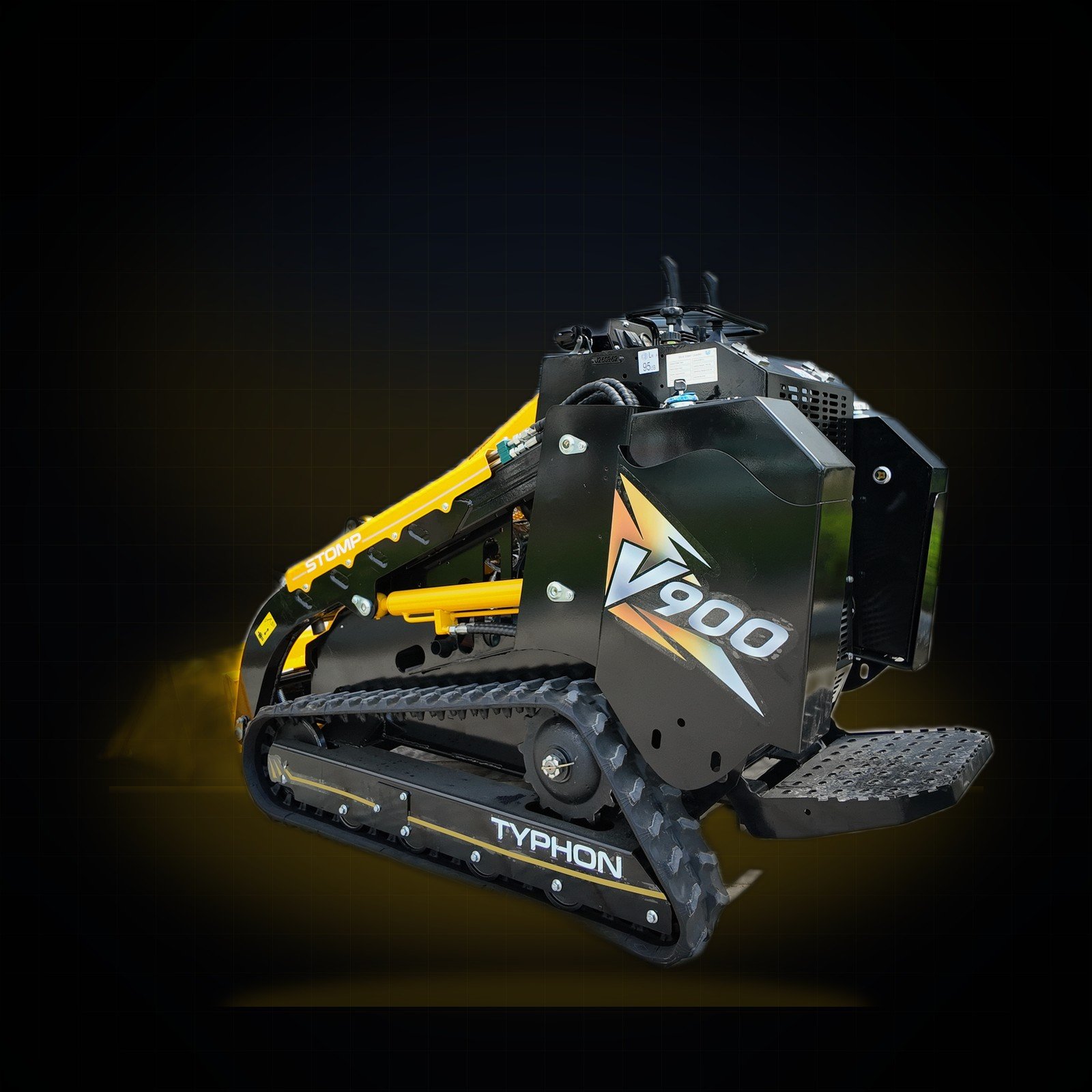

TYPHON STOMP V900 stand-on operator platform

Emissions Compliance

The STOMP V900 meets both EPA and EU Stage V emission standards, making it suitable for use by contractors, municipalities, rental fleets, and agricultural operations operating under environmental regulatory requirements.

Summary

The TYPHON STOMP V900 combines Kubota diesel power, a dual-circuit hydraulic system, and a reinforced lifting structure within a 35.9-inch-wide platform, providing a compact solution for operations that require full-size performance in restricted-access conditions.

Additional specifications and purchasing information are available at MachineryVillage.com.
